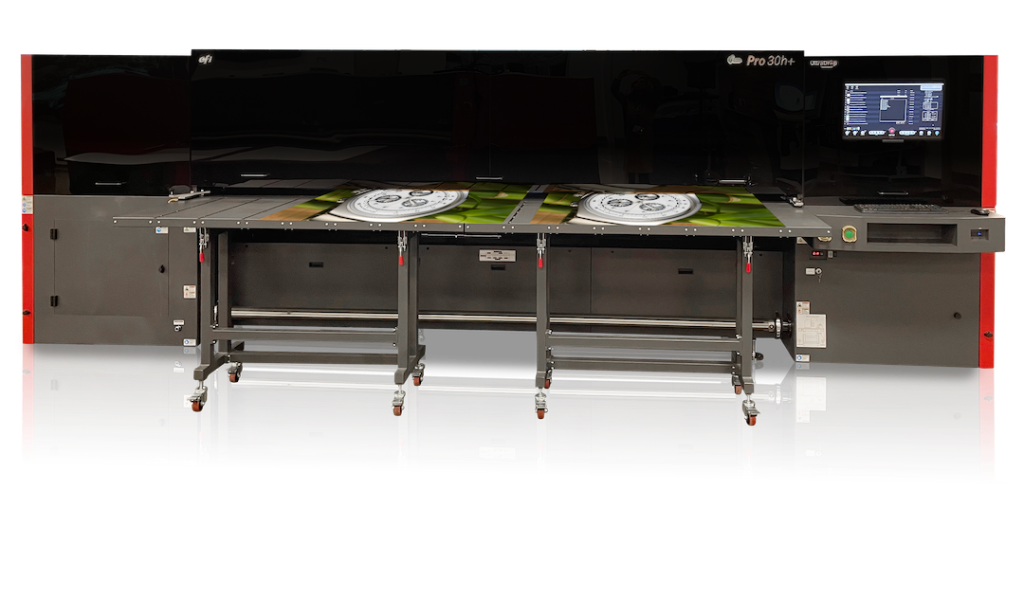

EFI Vutek Pro 30h



The EFI™ Pro 30h hybrid LED entry level production printer is strategically positioned to offer superior image quality, versatility and productivity at a competitive price point; prints on a wide variety of substrates in a wide variety of applications; and targeted to
commercialprinters, sign shops and in-plant printers.

A cost-effective, 3.2-meter hybrid printer that delivers the consistency, versatility and environmentally friendly benefits that have made EFI LED hybrid printers the clear choice in the marketplace –now available to the entry level market.


  • Standard CMYK plus two white channels
  • Dynamic curing Led UV lamps
  • Grayscale printing up to 1200dpi
  • Productivity up to 2477 ft2 ,or 60 BPH
  • Optional Clear channel
  • Print up to 5 layers in a single pass
  • Dual roll printing
  • Continuous Board printing
  • Rigid and flexible media support
  • Advanced media-platen vacuum system with 6 chambers having their own independent vacuum power controls
  • Dual touchscreen graphical user interface in front and back of printer for ease of
    operation in multiple applications
  • Optional EFI ProGraphics™ UV LED curing ink sets to choose from
  • Embedded Fiery proServer Core digital front end



  • Maximum printable width: 320cm
  • Maximum media thickness: 5.08cm
  • Size zone,user-selectable vacuum system
  • Maximum media weight on table: 90.7kg
  • Maximum roll weight: 200 kg
  • Maximum roll diameter: 30.5 cm


  • Express mode maximum speed: 230 m2/hr
  • White printing at one-half CMYK speeds

File Format

  • All popular desktop files formats,including Adobe®  PostScript® 3™ ,EPS,TIFF,PDF,and RGB/CMYK

Environmental Considerations

  • Temperature: 20 °C–30 °C
  • Humidity: 40%–80% (non-condensing)
  • Weight: Approximately 3100 kg uncrated
  • Electrical: 200-240VAC,single phase,50/60 Hz 32A
  • Dimensions (W x D x H): 575 cm x 192 cm x 194 cm

EFI Prographics Series UV inks

  • 5.0-litre containers
  • Twelve-month shelf life

EFI Fiery Digital Front End

  • Ships with an EFI Fiery proServer Core digital front end


Product Brochure
