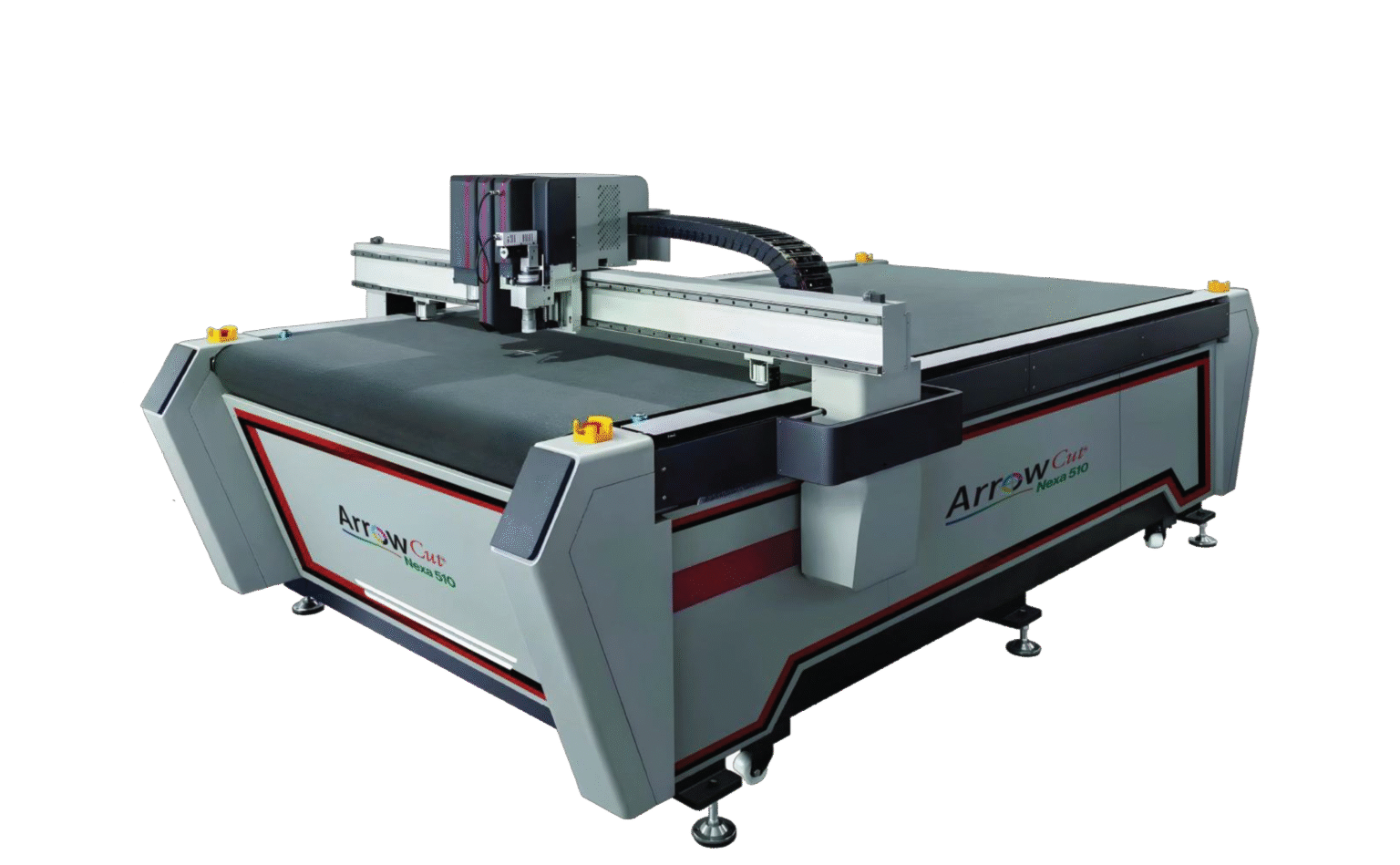

ArrowCut Nexa 510
Next-Generation Flatbed Cutter for Precision, Power & Productivity
The ArrowCut Nexa 510 is an advanced digital flatbed cutting solution, purpose-built for industries like packaging, signage, textiles, and labeling. With high-speed tool carriage capabilities, a multi-zoned vacuum table, and a robust steel frame, this powerhouse cutter is engineered to tackle everything from delicate kiss-cuts to heavy-duty routing.
Key Features
High-Speed Performance: Achieve cutting speeds of up to 100 meters per minute, ideal for both short-run and large-scale production.
Multiple Tool Configuration: Supports dual or triple tool combinations — including oscillating knives, routers, creasing wheels, and more.
Industrial Build Quality: Heavy-duty steel frame with helical gear rack transmission and planetary gear box for vibration-free precision.
Vacuum Conveyor Table: Ensures stable material handling with T-slot support for reliable, seamless workflows.
CCD Registration System: Integrated industrial camera ensures perfect alignment and precision contour cutting.
User-Friendly Interface: Network-enabled control panel allows for remote diagnostics and software upgrades.
| Specification | Details |
|---|---|
| Working Area | 1600 × 3200 mm (5 × 10 ft) |
| Z-Axis Stroke | 140 mm |
| Max Speed | Up to 100 m/min |
| Accuracy | ≤ 0.05 mm |
| Machine Dimensions | 4600 × 3500 × 2000 mm |
| Machine Weight | 1800–2000 kg |
| Table Type | Conveyor Vacuum Table + T-Slot Working Table |
| CCD Registration System | Industrial CCD Camera Registration System |
| Tool Configuration | Dual Tools (EOT + UCT) / Triple Tools (Router + Oscillating Knife + Creasing Wheel) |
| Router Power & RPM | 3.7 HP Water-Cooled Spindle, 40,000 RPM |
| Supported File Formats | JPG, DXF, PDF |
| Power Requirement | AC 380V / 60Hz |
| Vacuum Pump Power | 7.5 kW Air-Cooled Vacuum Pump |
| Servo Motor Details | Leadshine AC Servo Motor (Panasonic Servo Optional) |
