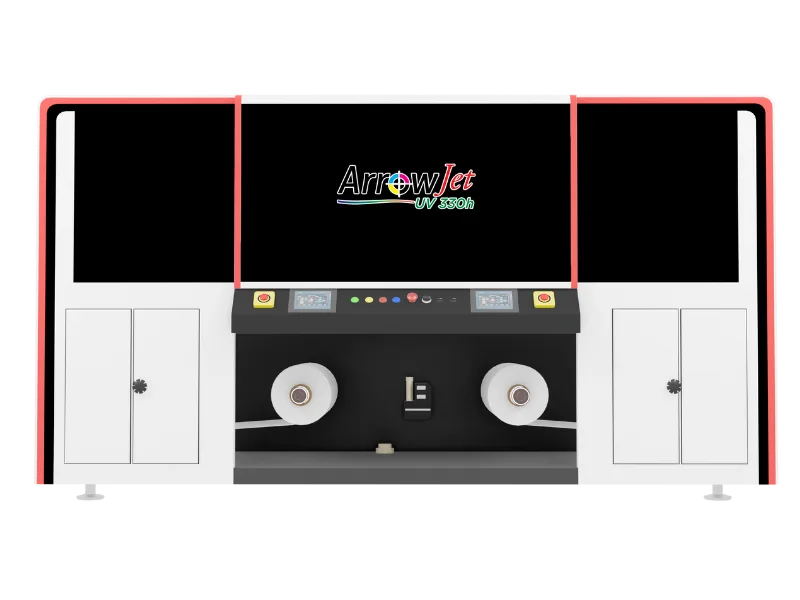

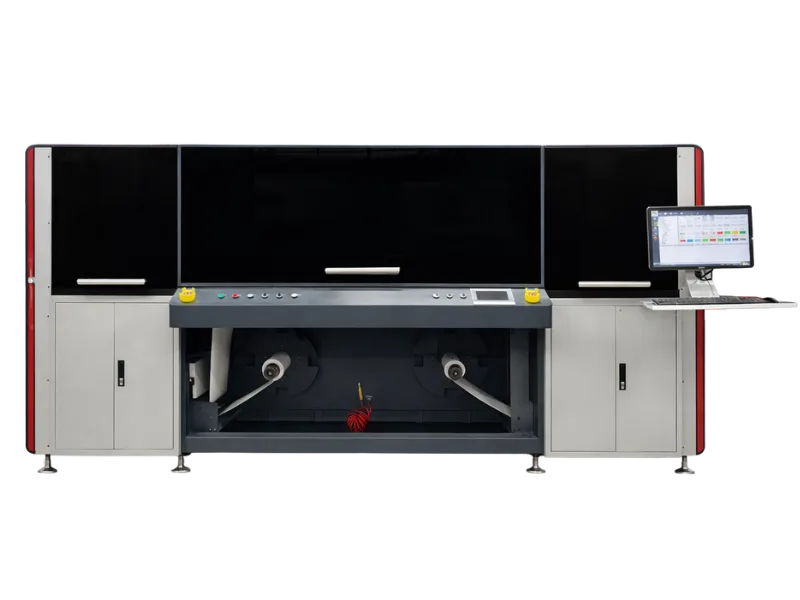

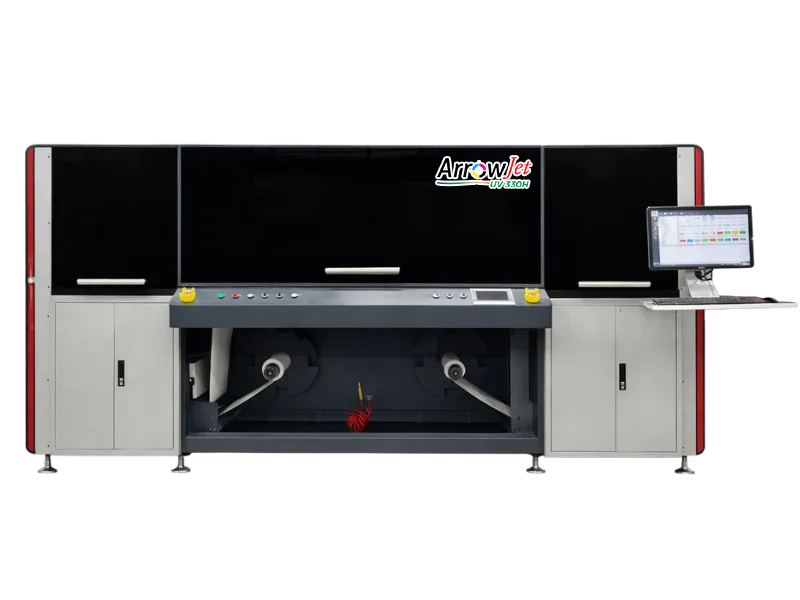

ArrowJet UV 330H
One System. Infinite Possibilities.
Versatile UV-LED Inkjet Printing for Labels, Packaging & Industrial Applications
The ArrowJet UV 330H is a compact yet powerful UV-LED inkjet system engineered for businesses that demand precision, flexibility, and speed—without complexity. Designed as a true all-in-one digital production platform, UV 330H seamlessly handles roll-to-roll and flatbed printing, enabling you to move effortlessly between labels, packaging, rigid boards, and variable data jobs.
Whether you’re producing short-run labels, customized packaging, industrial decoration, or sample production, ArrowJet UV 330H delivers consistent, high-resolution output—job after job.
Why ArrowJet UV 330H?
Digital Freedom Without Compromise
Traditional printing limits agility. ArrowJet UV 330H removes those barriers—no plates, no cylinders, no long setup times. Print what you want, when you want, exactly how you want it.
Built for Versatility
From thin films to rigid boards, transparent substrates to metallic surfaces—UV 330H adapts instantly. One system replaces multiple machines.
Industrial Precision. Compact Footprint
Highly engineered, space-efficient design integrates professional production features into a single robust platform—ideal for growing print environments.
| Category | Feature | Specification / Description |
|---|---|---|
| Print Performance | Print Resolution | Up to 720 × 4800 DPI for sharp text, fine details, and scannable barcodes |
| Single Print Swath | Up to 320 mm (12.6 in) for higher productivity | |
| Ink Configuration | CMYK + White / Varnish / Spot Color support | |
| Printheads | Up to 18 industrial piezo printheads with Variable Droplet Size (VDS) technology | |
| Output Quality | Smooth gradients, vivid colors, and crisp micro-text every time | |
| Hybrid Printing System | Printing Modes | True Hybrid Printing: Roll-to-Roll & Flatbed |
| Flatbed Mode | Printing Type | Direct printing on rigid substrates with absolute registration accuracy |
| Flatbed Size | 1200 × 350 mm | |
| Maximum Print Size | 1100 × 320 mm | |
| Z-Axis Height | Up to 40 mm | |
| Ideal Applications | Stationery, cards, gifts, novelties, control panels, electronics | |
| Roll-to-Roll Mode | Media Type | Labels, films, and flexible media |
| Maximum Print Width | 320 mm | |
| Feeding System | Page-by-page roll feeding up to 1100 mm length | |
| Media Compatibility | Coated & uncoated papers, films, foils, and label stocks | |
| Media Control | Precision feeding and tension control |
