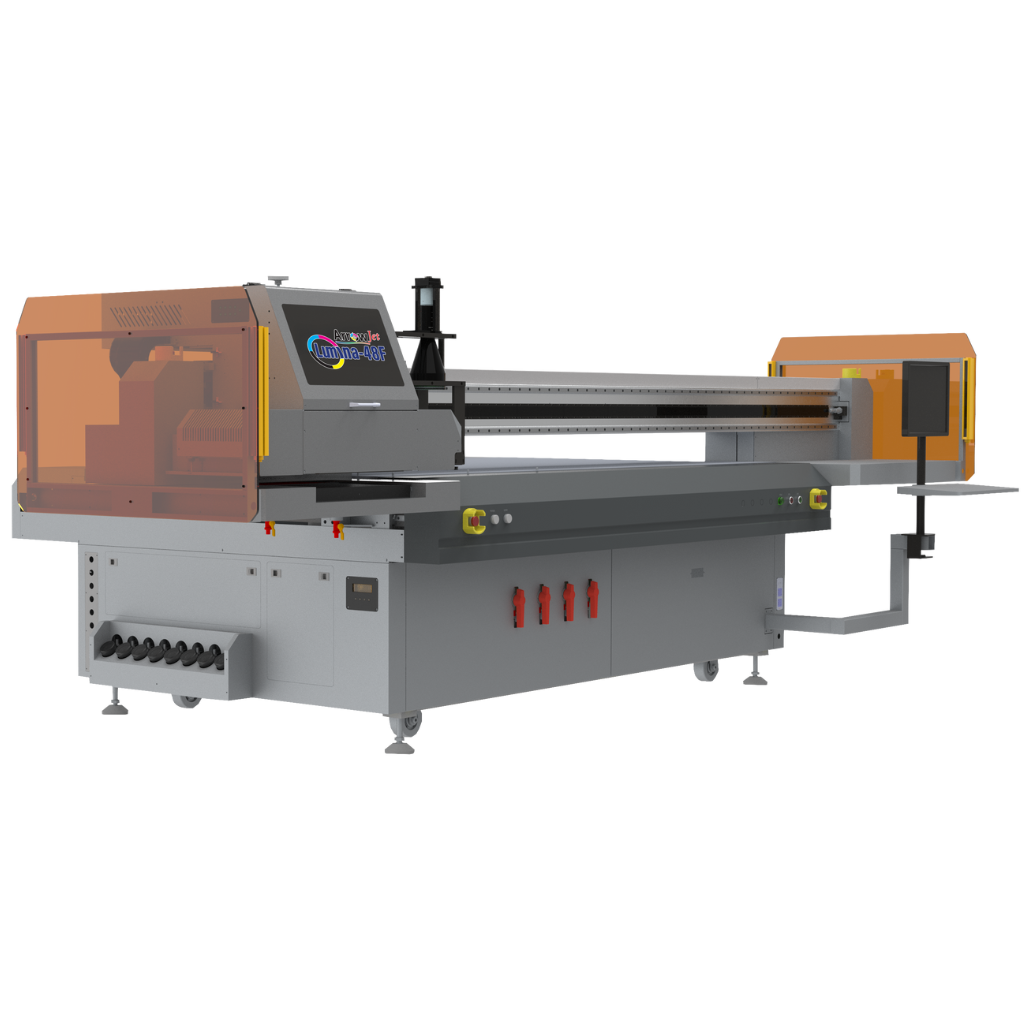

ArrowJet Lumina 48F
The Smartest Entry in UV Flatbed Technology
Low on Budget, High on Value
The ArrowJet Lumina 48F is designed for print professionals who demand exceptional quality and versatility—without breaking the bank. Whether you’re printing on rigid or flexible media, this advanced UV flatbed printer delivers unmatched value, vibrant colors, and innovative features.
Maximum Printing Area: 2500 × 1300 mm (98.43 × 51.18 in)
Supported Media: Glass, Acrylic, Metal, Wood, Leather, PVC, and more
Print Resolution: Up to 1200 dpi
Ink Colors: CMYK, White, Varnish, Light Cyan, Light Magenta
Multi-Color Configurations: 10+ combinations including CMYK + White + Varnish
Perfect For:
- Signage & Displays
- Thermoforming
- Retail Graphics
- Promotional Products
- Industrial Printing
- Interior Decor
Specification
Brochures
Specification
| Feature | Specification |
|---|---|
| Model | ArrowJet Lumina-48F |
| Printhead | 2 – 11 Ricoh Gen6 |
| Resolution | 1200 dpi |
| Color | CMYK, White, Varnish, Lc, Lm (optional) |
| Material Thickness | 0-110 mm (4.33 in) |
| Ink Drying System | UV LED curing system |
| Vacuum Suction | 4 zones |
| Printing Size | Max Printing Area: 2500 × 1300 mm (98.43 × 51.18 in) |
| Max Material Size: 2530 × 1350 mm (99.61 × 53.15 in) | |
| Ink Supply System | Auto-negative pressure ink supply system |
| Media Compatibility | Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC, PP, PE, PTFE, ACP, Sun board |
| RIP Software | Photoprint (Included), PrintFactory / Caldera (Optional) |
| Operation Environment | Temperature: 18–26°C, Humidity: 40–70% |
| Power Supply | Max 5 kW; AC: 50/60Hz; 220V (±10%) ≥15A |
| Image Formats Supported | TIFF, JPEG, EPS, PDF |
| Max. Print Speed Modes | High Speed (4-pass): Up to 870 ft²/hr |
| Standard Speed (6-pass): Up to 580 ft²/hr | |
| Precision Speed (8-pass): Up to 435 ft²/hr | |
| Multi-Color Options | CMYK |
| CMYK + Varnish | |
| CMYK + LC + LM | |
| CMYK + LC + LM + Varnish | |
| White + CMYK | |
| White + CMYK + Varnish | |
| CMYK + White | |
| CMYK + White + Varnish | |
| CMYK + White + CMYK | |
| CMYK + White + CMYK + Varnish |
