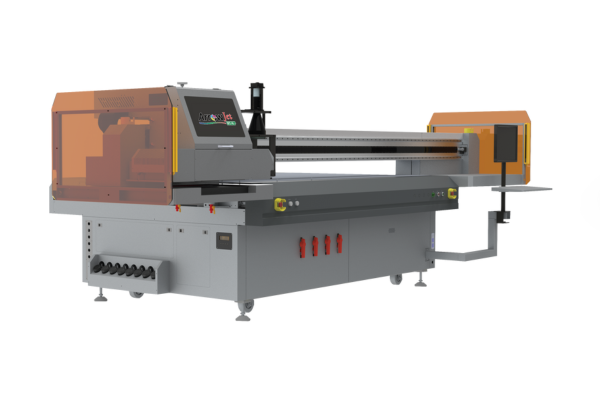

ArrowJet MTS 48
Designed for the Real World of Membrane Switch Manufacturing
Membrane switches and touch panels operate in environments where ordinary prints simply don’t survive. They are pressed, embossed, laminated, exposed to chemicals, heat, moisture, and constant use.
ArrowJet MTS is engineered specifically to handle these realities.
With industrial-grade UV LED curing, flexible Polyflex inks, and high-resolution imaging, it ensures that every printed layer bonds perfectly, flexes without cracking, and remains visually stable over the product’s entire lifecycle.
This is printing that performs long after it leaves the factory floor.
Why ArrowJet MTS?
Built for Second-Surface Printing
ArrowJet MTS is optimized for reverse printing on polycarbonate and polyester films, protecting graphics beneath the surface where they are shielded from abrasion, chemicals, and wear.
The result?
Cleaner graphics. Longer life. Zero compromise on durability.
Flexible UV Inks That Work With Your Process
The Polyflex PC UV LED curable inks are designed to move with the material—not fight it.
They offer:
Strong adhesion on PC, PET, and membrane films
Flexibility for embossing and tactile switch actuation
High opacity and vibrant colors for crisp icons and legends
Resistance to chemicals, moisture, and abrasion
Compatibility with high-tack pressure-sensitive adhesives
This means smoother embossing, reliable lamination, and consistent results—even in multi-layer constructions.
From Print to Finished Panel with a Smarter Workflow
Step 1: Precision Reverse Printing
Graphics are printed on the second surface of the film, ensuring long-term protection and clarity.
Step 2: Fast, Controlled UV LED Curing
Instant curing delivers stable inks that remain flexible and resistant to heat and humidity.
Step 3: PSA Application Without Ink Failure
After a recommended post-cure period, high-tack adhesives can be applied without ink lift, smearing, or migration.
Step 4: Embossing & Assembly
Printed layers withstand forming, embossing, and repeated switch actuation without cracking or delamination.
The outcome is a membrane switch or touch panel that looks premium, feels precise, and performs reliably year after year.
Applications
The ArrowJet MTS-48 is built for manufacturers in industries where performance and precision cannot be compromised.
Ideal for:

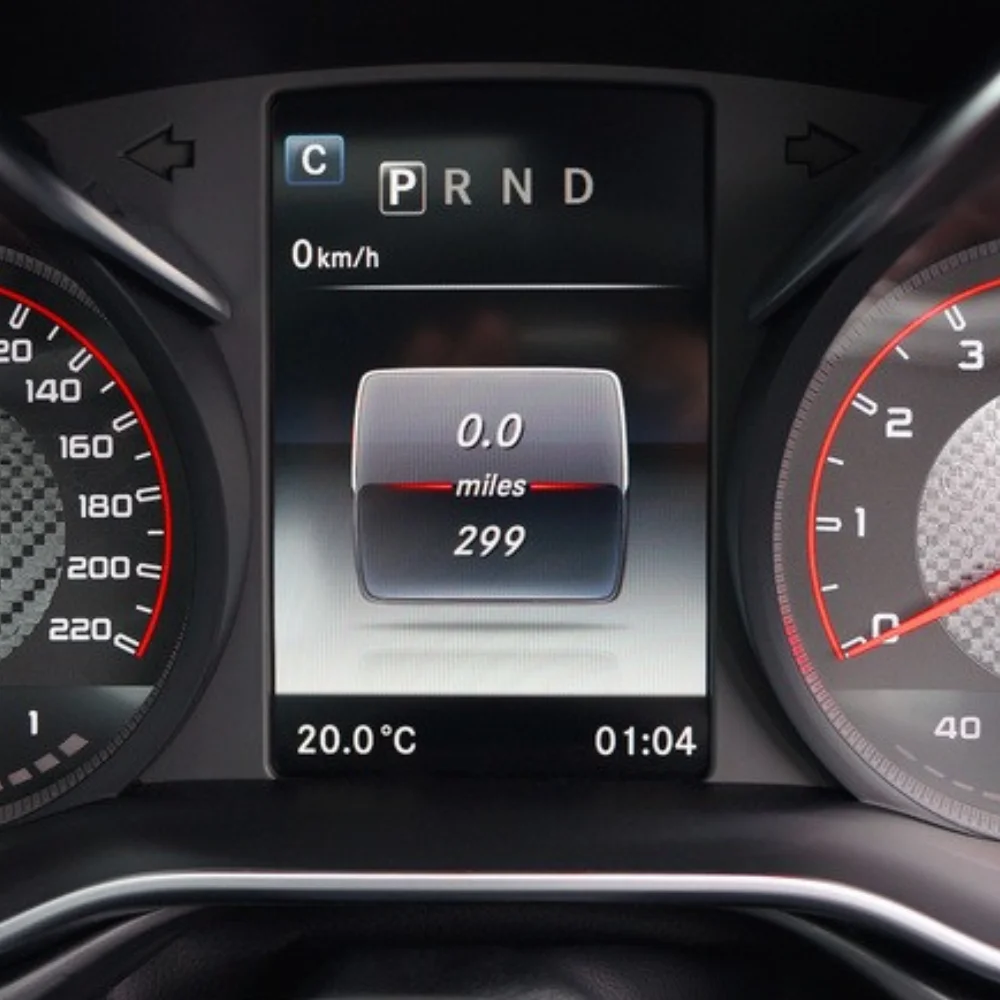

Automotive dashboards & instrument clusters

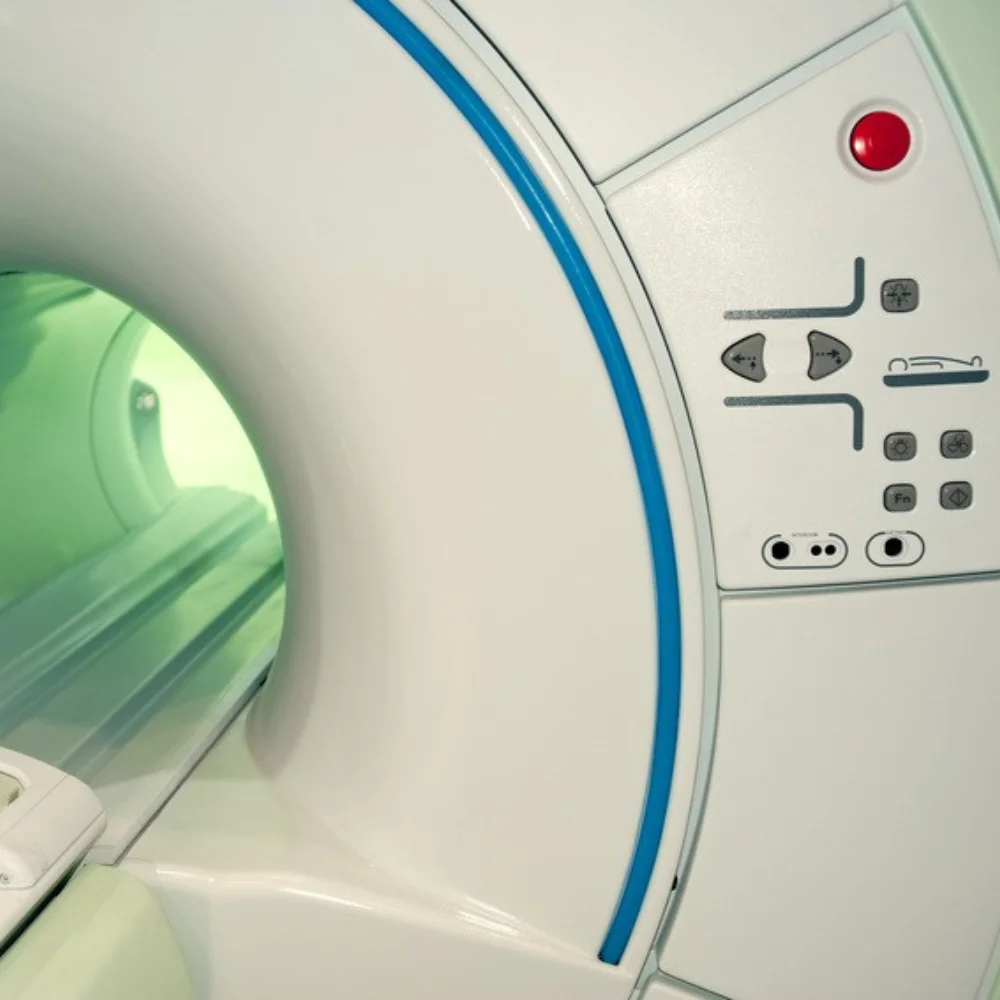

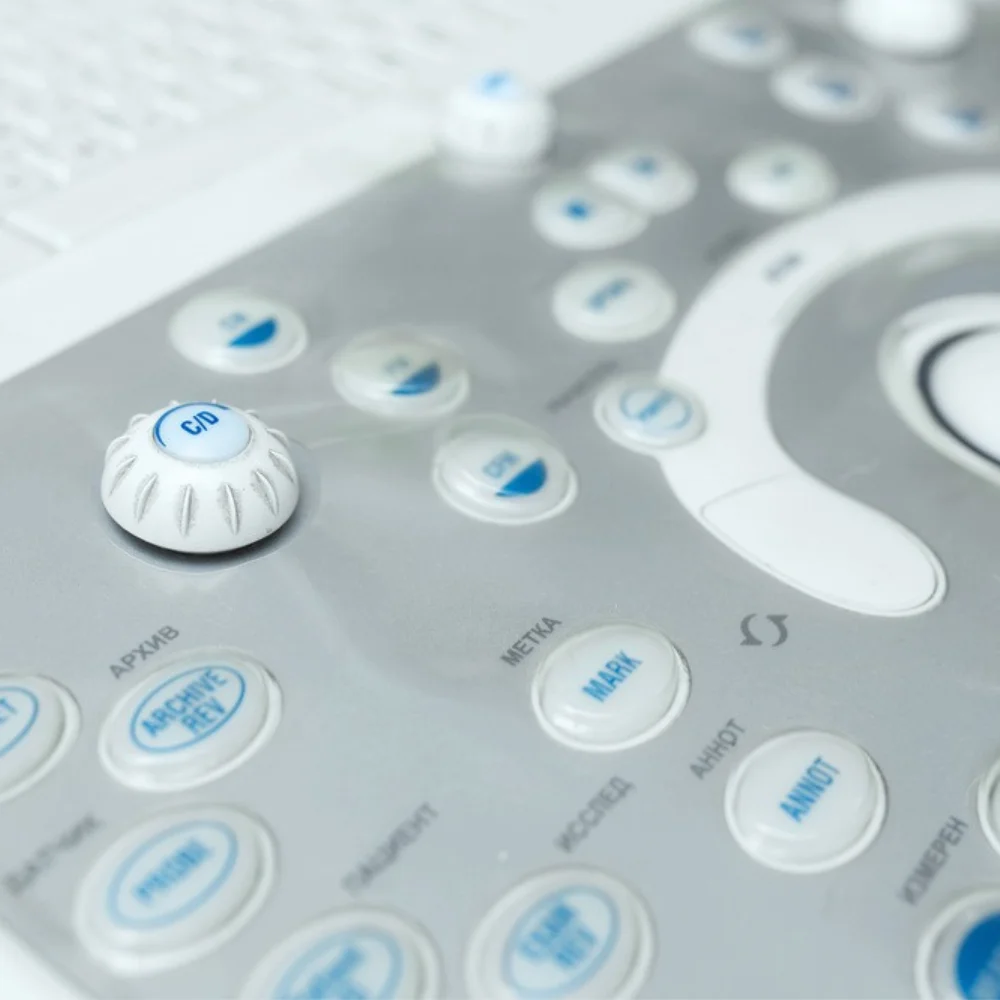

Medical equipment keypads
Industrial machine control panels

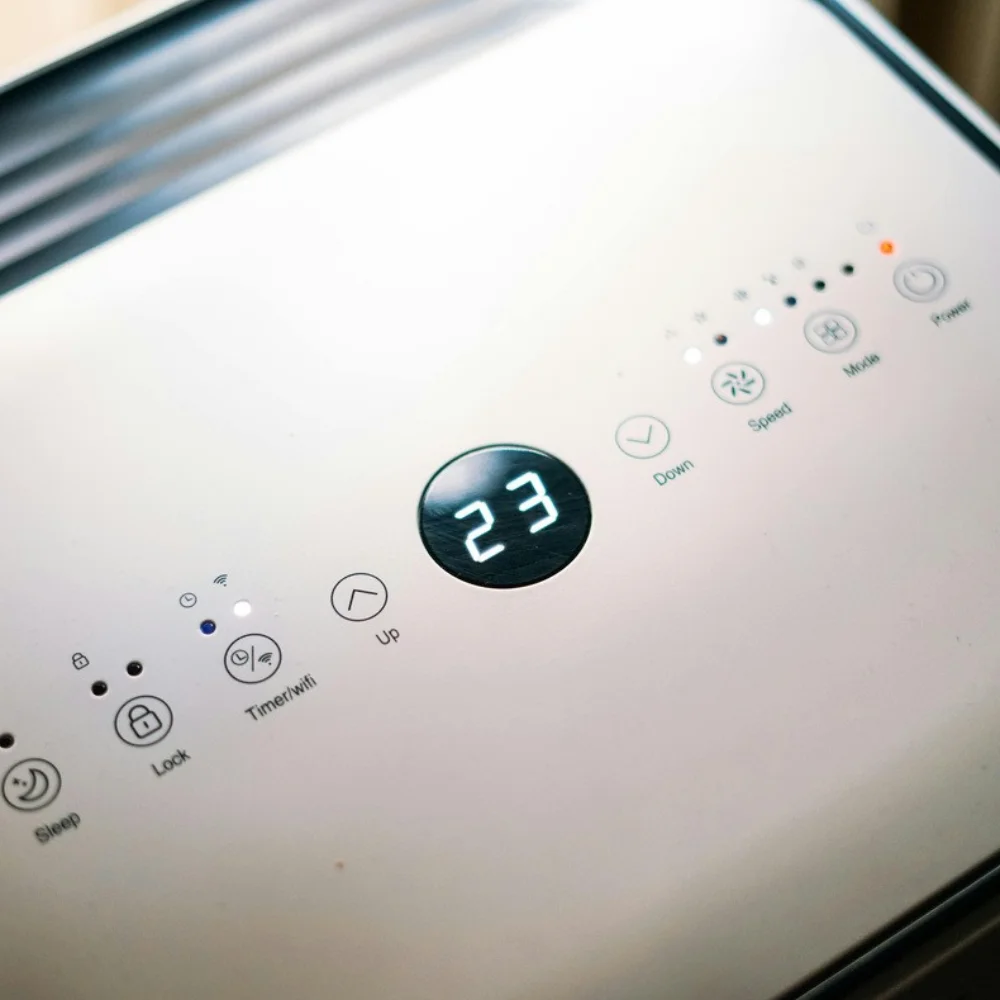

HVAC and climate-control interfaces

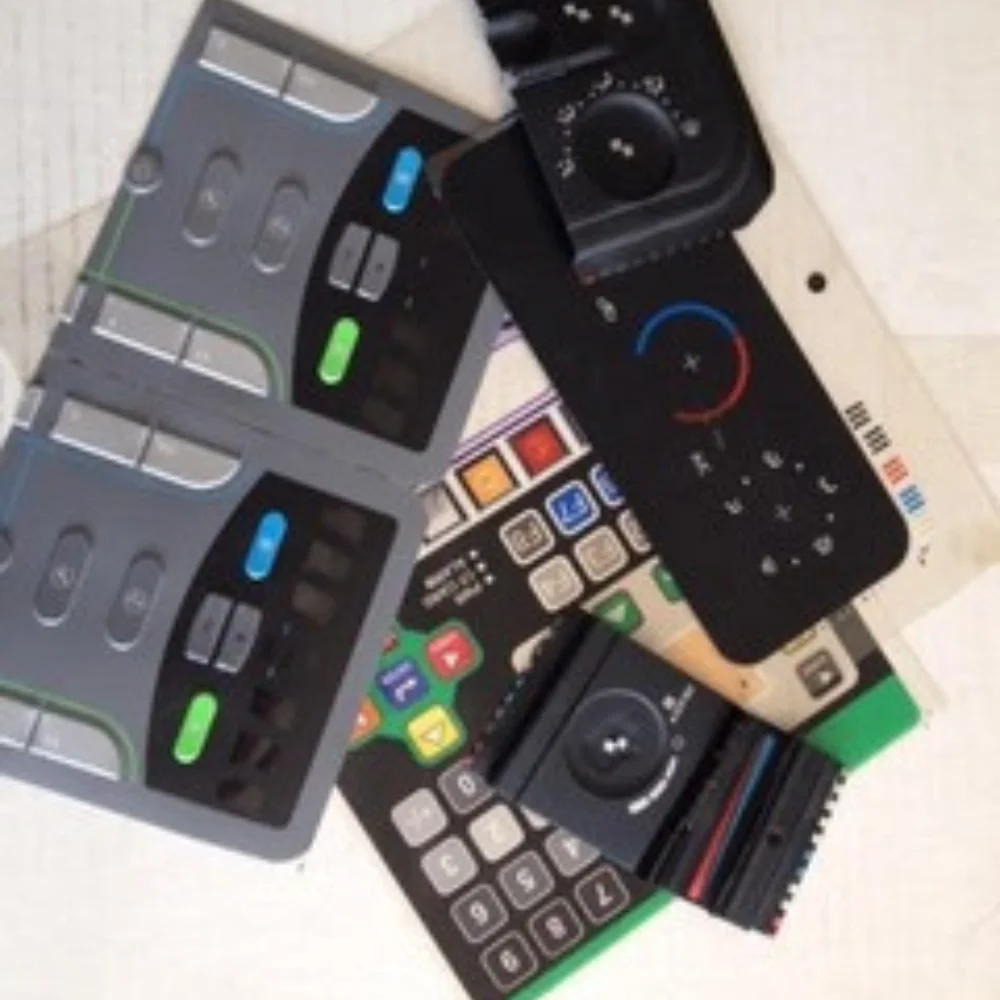

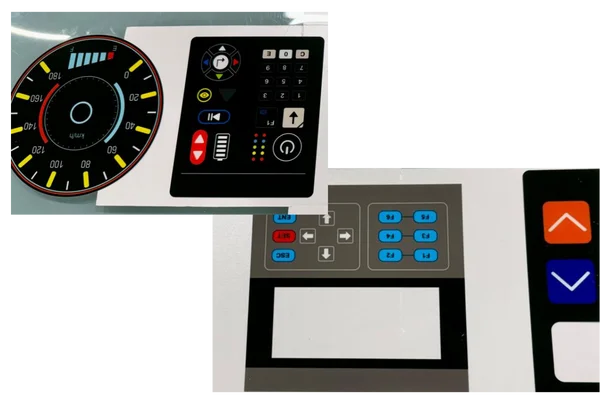

Membrane switches

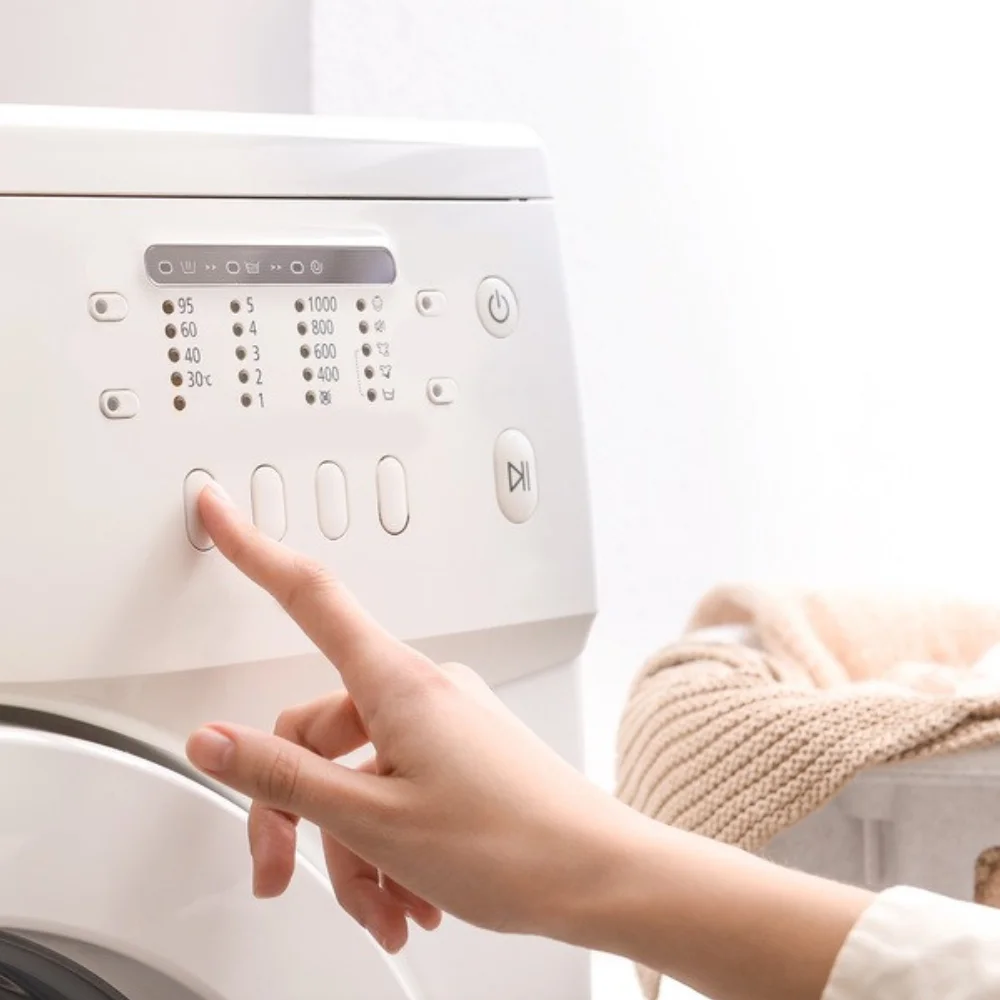

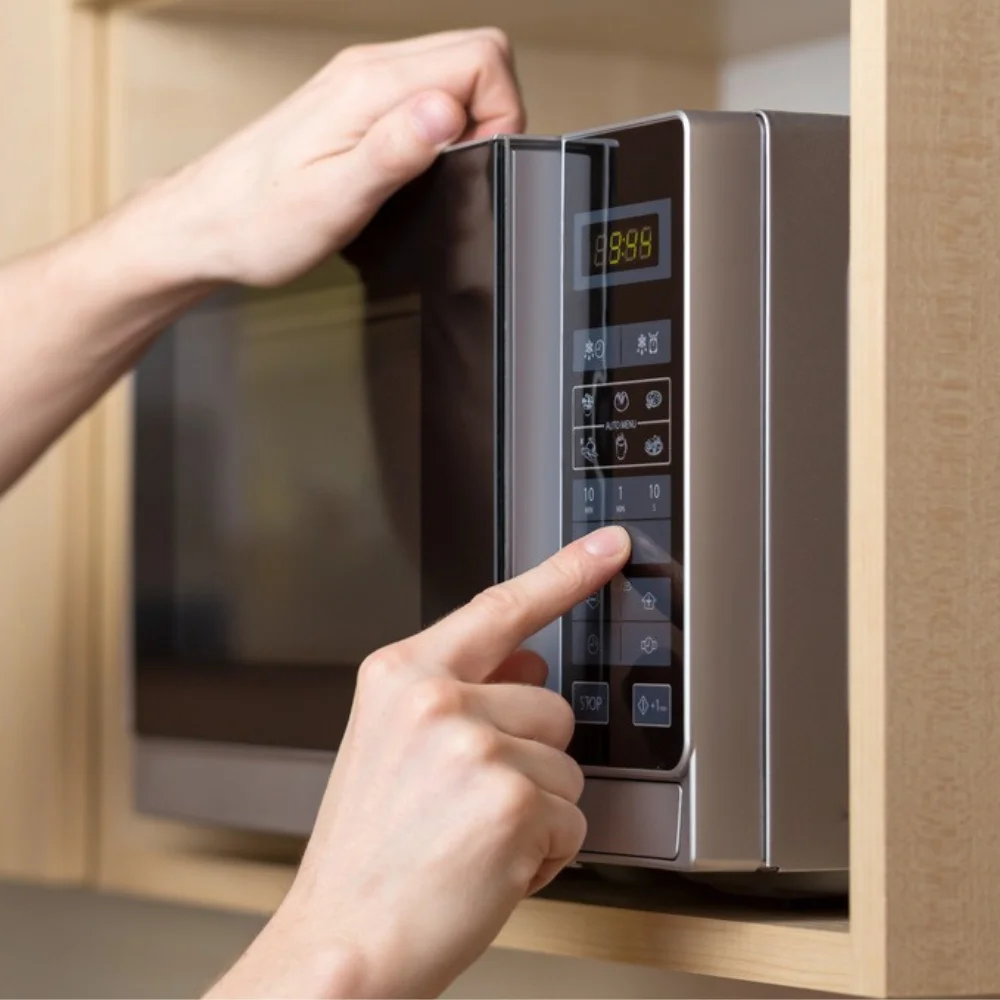

Consumer electronics user interfaces

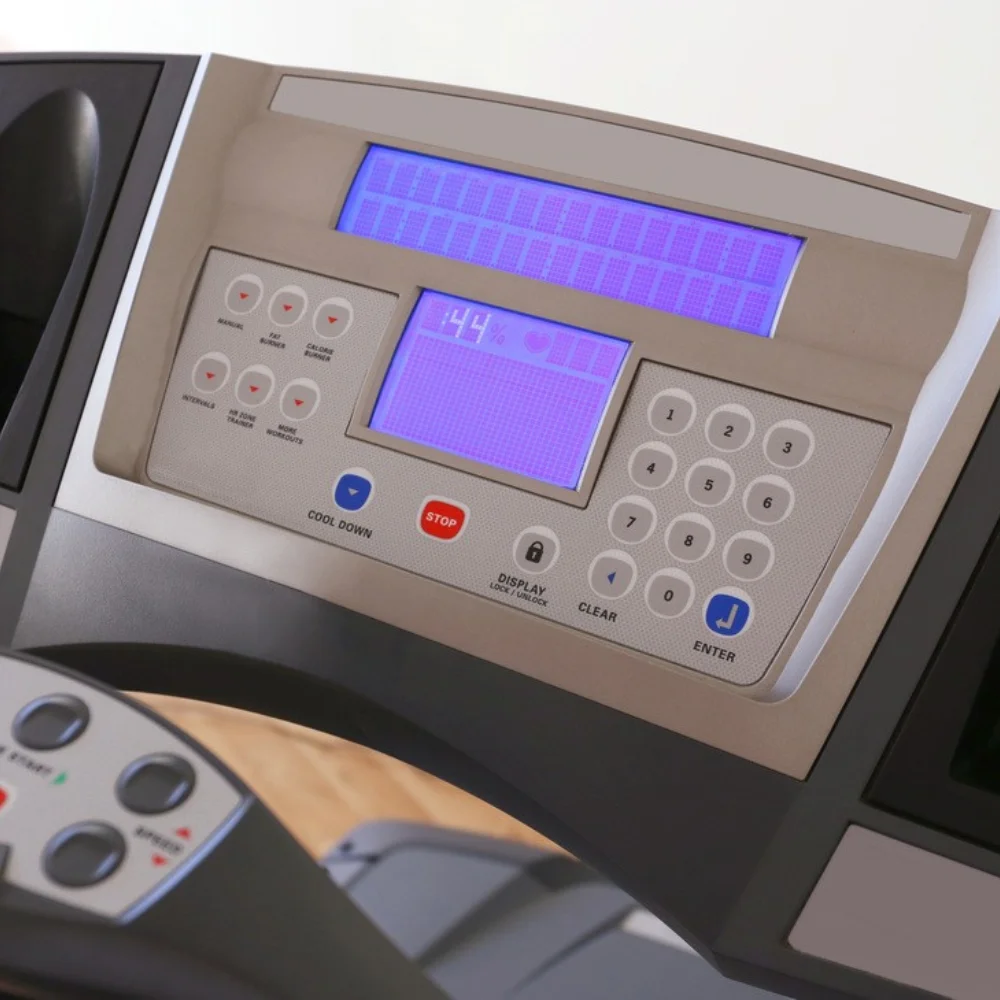

Fitness equipment interfaces
Aviation cockpit panels & gauges
ArrowJet MTS balances precision with productivity:
Up to 1200 dpi resolution for sharp text and fine details
3–6 Ricoh Gen6 printheads for scalable output
Production speeds up to 580 ft²/hr
Multi-zone vacuum flatbed for stable media handling
Whether you’re producing short custom runs or repeat industrial jobs, ArrowJet MTS delivers consistent quality at industrial speeds.
ArrowJet MTS is trusted across industries where interfaces must perform without exception:
Automotive dashboards and instrument clusters
Industrial machine control panels
HVAC and climate control interfaces
Medical equipment keypads
Consumer electronics user interfaces
Fitness equipment consoles
Aviation cockpit panels and gauges
In every application, it delivers clarity, durability, and confidence.
Up to 3 years of lightfastness
1500 hours of weathering with minimal visual change
Proven mechanical life-cycle durability
Meets ASTM cross-hatch adhesion standards
ArrowJet MTS supports a wide range of materials, including:
Polycarbonate, Polyester, PC/PET blends, PVC, rigid vinyl, Tedlar®, acrylic, and co-polyester giving you flexibility across industries and applications.
