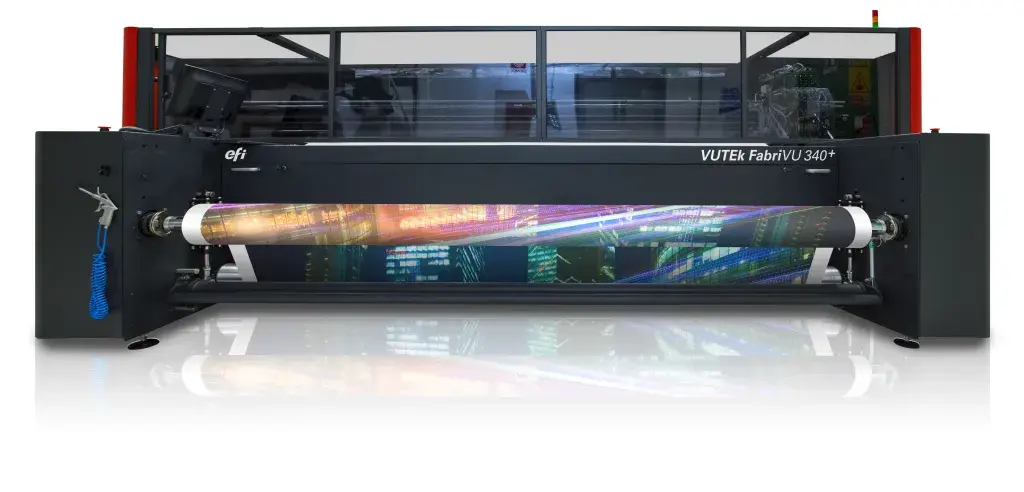

EFI VUTEk FabriVU 340i+(Plus)

Overview

More soft signage capabilities that fit your needs

When it comes to soft signage capabilities, the EFI™ VUTEk® FabriVU® 340i+ dye-sublimation printer offers more – a wider application range, production level speeds, outstanding image quality and inline fixation that allows you to direct print to fabric and sublimate inline, in one step, for production runs that are immediately ready for finishing and shipping.

With the VUTEk FabriVU 340i+ model, you also get the lowest acquisition cost plus lowest total cost of ownership. So, when you want to offer soft signage, but don’t have the floor space or budget for a dedicated calendar heat press, the EFI VUTEk FabriVU 340i+ dye-sublimation printer fits your needs – brilliantly.

Specifications

Printing

  • Maximum printable width: 133 in (340 cm)
  • Resolution up to 2400 dpi
  • Four colors (CMYK)
  • EFI water-based, dispersed dye inks
  • All popular desktop files formats, including PostScript® 3™, EPS, TIFF, PDF, and RGB/CMYK

Productivity

  • Outdoor mode up to 5,172 ft2/hr (480 m2/hr)
  • Production mode up to 2,664 ft2/hr (248 m2/hr)
  • Backlit mode up to 1,791 ft2/hr (166 m2/hr)

Media handling

  • Paper weight: 45 to 140 gr/m2
  • Maximum roll weight: 1,100 lbs. (500 kg)
  • Maximum outside diameter unwinder/rewinder: 18 in (450 mm)
  • Inline sublimation: Heated platen
  • Integrated flag printing kit for flag and porous media printing
  • Optional vacuum system for transfer paper

Environmental considerations

  • Temperature: Standard: 59-82 °F (15-28 °C); Optimal: 68-78 °F (20-25 °C)
  • Humidity (non-condensing)*
    • Standard: 20-90%
    • Optimal: Textile 40-90%; Paper 40-60%
  • Weight: 10,582 lbs (4,800 kg)
  • Dimensions (L x W x H): 86 in x 242 in x 71 in (218 cm x 615 cm x 180 cm)
  • Typical operational power consumption: 30 kW
*Humidity level <40% may result in more maintenance cycles and purging of printheads

Applications
