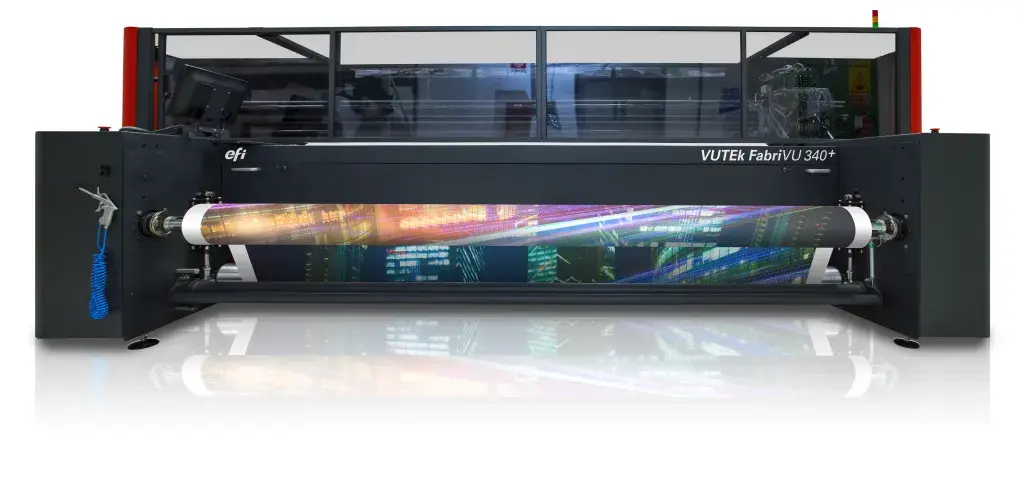

EFI VUTEk FabriVU 340i
The EFI™ VUTEk® FabriVU 340i dye-sublimation printer offers production level speeds, outstanding image quality, and inline fixation capability. It allows you to direct print to fabric and sublimate inline for one-offs that are immediately ready for finishing and shipping
Soft Signage Printer to Rule the Printing Industry
Lower total acquisition cost. Fast job turns. More premium-margin capability. It’s soft signage printing for the rest of us.
When you want to offer soft signage but don’t have the higher volumes, floor space, or capex spend to justify a soft signage printer —let alone a dedicated calender/heat press— you get a soft signage printer that fits your needs. Not the other way around.
Overview
Features
Specifications
Applications
Brochures
Overview
- 3.4-meter wide aqueous-based soft signage printer with new EFI platen and extraction technology system that enables
product to be sublimated inline - Dramatic four-color printing with a wide color gamut and deep color saturation for exceptional fabric display graphics
- Production speeds up to 2,691ft2 (250 m2) per hour
- Prints direct to fabric with inline fixation for graphics that are immediately ready for finishing and packing
- Inline sublimation can be turned off and paper transfer can be leveraged if off-line sublimation is available
- Ideal for the production of flags, banners, backlit displays, and other high-end display graphics, including one-offs
Features
- 3.4-meter wide aqueous-based soft signage printer with inline sublimation
- Dramatic four-color printing with a wide color gamut and deep color saturation for exceptional fabric display graphics
- Ultra-high resolution up to 2,400 dpi and four level grayscale printing with 4pL to 18pL drop sizes
- Production speeds up to 2691 ft2 (250 m2) per hour
- Auto printhead cleaning station increases printer uptime
- Capping station to keep your system up and running
- Medium-viscosity ink, high-resolution printheads, and ink recirculation for improved ink yield
- Fiery® proServer SE with Fiery XF production digital front end and color management workflow
- Water based CMYK dispersed-dye Genuine EFI Inks
- Enhanced Service Program (ESP) warranty for your printer, Fiery proServer hardware, and Fiery XF software\
Specifications
EFI VUTEk FabriVU 340i
Media/Handling
- Prints up to 133 in (340 cm) wide
- Fabric weight from 45 to 450 gr/m22
- Paper weight from 57 to 110 gr/m22
- Entry and exit: standard roll unwinder/rewinder up to 13.75 in (350 mm) outside diameter
- Inline sublimation: heated platen
Resolution
- Up to 2,400 dpi
Productivity
- Production speeds (max.) up to 5,381 ft2 (500 m2) per hour2 (400 m2) per hour
- Production image quality: 2,690 ft2 (250 m2) per hour2 (200 m2) per hour
- POP image quality: 1,776 ft2 (165 m2) per hour2 (132 m2) per hour
Formats
All popular desktop file formats, including PostScript®3™, EPS, TIFF, PDF, RGB/CMYK
Environmental considerations
- Temperature: 68-75 °F (20-24 °C)
- Humidity: 50-60%
- Weight: 10,582 lbs (4,800 kg)
- Printer dimensions (L x W x H): 90 in x 242 in x 71 in (230 cm x 615 cm x 180 cm)
- Printer electrical: 3 Phase, 400V, 50Hz, 42kW
- Water pressure: min. 22 psi (1.5 bar); max. 29 psi (2 bar)
- Water volume: 1.3 gallons (5 liters) per day
- Water temperature: 68-77 °F (20-25 °C)
Genuine EFI Inks
Water-based CMYK dispersed dye inks
Fiery digital front end
Applications
- Table throws
- Short-term
- promotional tents
- Backdrops
- Hanging banners
- Wall murals
- SEG backlit
- Stretch fabric exhibit graphics
- Promotional flags and banners
- National flags
- Retail fixtures
