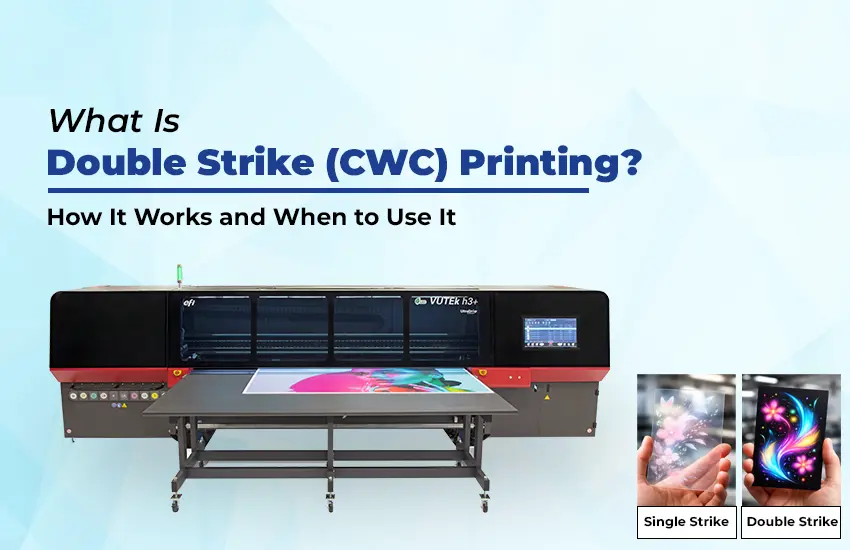

What Is Double Strike (CWC) Printing? How It Works and When to Use It

CWC (Double Strike) printing is a UV large format technique that uses three ink passes — Colour, White, Colour — to maximise colour density on clear, dark, and metallic substrates.

Most large format UV printers apply ink in a single CMYK pass. On white or coated media, this works well. But on clear, dark, or metallic substrates, single-pass output falls short — colours lack depth, blacks look grey, and vibrancy disappears entirely.

This article explains how CWC works, which applications benefit most, and when to deploy it.

What Does CWC Stand For?

CWC stands for Colour – White – Colour: the three sequential ink passes the printer executes to build the final image on a UV large format printer.

You may also encounter it as Double Strike mode or multi-pass white-base printing. All three terms describe the same technique.

The three white ink printing modes differ in layer order and output density:

CWC — Double Strike

Three ink passes in sequence: CMYK colour first, then a UV-cured white base layer, then CMYK colour again. The white mid-layer reflects light back through the second colour pass, significantly amplifying density and saturation. The name ‘Double Strike’ refers to CMYK colour being applied twice — before and after the white layer.

White Under (Standard)

A white ink layer is printed first, then CMYK is applied on top. One white pass, one colour pass. Standard for clear or transparent substrates where a single white base provides sufficient opacity without the need for a second colour pass.

White Over (Standard)

CMYK is printed first, then white is applied on top for spot highlights or reverse-out effects. One colour pass, one white pass. Used for selective white highlights on dark substrates where full-base density is not required.

How CWC Printing Works — Step by Step

CWC requires a UV large format printer with a dedicated white ink channel and multi-pass RIP sequencing — each of the three passes is UV-cured before the next begins.

The three passes, in sequence:

Pass 1 — First Colour Layer

The printer deposits a standard CMYK layer directly onto the substrate. On transparent or dark substrates this pass alone produces muted output — there is no reflective base beneath the ink to amplify colour density.

Pass 2 — White Ink Base Layer

A full UV-cured white ink layer is printed on top of the first colour pass. This white layer blocks the substrate from showing through and creates a bright, opaque reflective surface. UV curing between passes locks the layer before the next is applied, preventing ink mixing or bleed-through.

Pass 3 — Second Colour Layer

The identical CMYK image is printed again onto the white base. With a bright white surface reflecting light back through the ink, colour density and saturation increase significantly compared to the first pass alone.

Why UV curing between passes matters

Without UV curing between each pass, wet ink layers would mix and bleed into one another, destroying colour accuracy. The UV cure step is what makes CWC’s layer precision possible — each layer is a fixed, stable base before the next is applied.

When to Use CWC — Colour Density and Saturation Use Cases

CWC is best reserved for applications where colour density is critical and the substrate would otherwise compromise output quality — it trades throughput for significantly higher vibrancy.

Clear and Transparent Substrates

Printing on clear acrylic, polycarbonate, or transparent PVC without a white base produces washed-out colours — light passes through the ink instead of reflecting off a white surface. CWC builds a white mid-layer that creates the reflective base the substrate cannot provide, delivering full-density colour on completely clear stock.

Dark and Metallic Substrates

Black foamboard, dark corrugated plastic, brushed aluminium, and metallic-laminated boards absorb light rather than reflecting it. A single CMYK pass produces muted, low-contrast output. CWC’s white layer creates a bright reflective surface that makes colours pop on dark stock.

Retail POP and Display Printing

POP displays compete for attention at close viewing distance. CWC output produces gamut depth comparable to offset printing — critical when brand colours must be exact and vibrancy must hold at 30 cm viewing distance.

Backlit Graphics

CWC significantly improves backlit output quality. When light passes through a graphic from behind, colour density and opacity become critical. The white mid-layer increases opacity and colour punch under illumination — a measurable advantage for airport lightboxes, mall displays, and premium retail backlits.

Vehicle Graphics on Dark Films

Dark-base vehicle wrap films require a white underbase for accurate colour output. CWC builds this base directly into the print sequence — no separate primer or pre-treatment process is required.

Premium Décor and Fine Art Prints

Luxury interior graphics, museum-quality reproductions, and premium wall décor benefit from the additional colour richness CWC delivers over single-pass output — gamut depth is part of the value proposition for these applications.

CWC vs Standard White-Under and White-Over Modes

The table below compares the three primary white ink printing modes on UV large format printers by layer order, use case, colour density, opacity, and throughput impact.

Mode

Layer Order

Primary Use Case

Colour Density

Opacity

Throughput

White Under

White → CMYK

Clear / transparent substrates, standard backlit

Good

High

Moderate ↓

White Over

CMYK → White

Spot white on dark substrates, reverse-out effects

Standard

Selective

Moderate ↓

CWC — Double Strike ★

CMYK → White → CMYK

Maximum density on clear, dark, metallic substrates

Significantly Higher ★

Very High

Higher ↓↓

CWC produces the highest colour density of the three modes. The tradeoff is throughput — three passes require more machine time per sheet. For premium-margin applications, this tradeoff is almost always justified.

Substrates That Benefit Most from CWC Printing

CWC delivers the greatest visible improvement on substrates that are transparent, dark, or metallic — where single-pass CMYK output lacks a reflective base for full colour density.

  • Clear cast acrylic and clear sheet acrylic  — transparent; no natural reflective base for single-pass CMYK output.
  • Transparent PVC and clear self-adhesive film  — window graphics, see-through displays, clear-on-clear label applications.
  • Polycarbonate and PETG rigid sheets  — instrument panels, industrial display covers, thermoformable signage applications.
  • Dark foamboard and Kapa board  — retail display, exhibition graphics, and in-store visual merchandising on dark-base stock.
  • Brushed aluminium and metallic-laminated boards  — premium retail environments, brand experience zones, high-end display fabrication.
  • Gold and silver foil-laminated substrates  — luxury POP displays, premium packaging displays, and high-end décor applications.

Production planning note

All substrates above will see a reduction in output speed compared to single-pass printing. Factor CWC production time into job scheduling and client lead times — particularly for large retail rollouts with tight installation deadlines.

CWC on EFI VUTEk H-Series UV Large Format Printers

Not all UV large format printers support CWC mode — the technique requires a dedicated white ink channel and multi-pass RIP sequencing capability.

The EFI VUTEk h3+ and EFI VUTEk h5+ UV hybrid printers support multi-layer white ink printing modes natively, making them well-suited for CWC production work across sign, display, backlit, and premium décor applications. For print businesses regularly working on clear, dark, or metallic substrates, this capability is a production differentiator.

If CWC output is a production requirement, confirm white-channel support and multi-pass mode availability in the printer’s RIP before purchase.

Frequently Asked Questions About CWC Printing

Common questions about Double Strike (CWC) mode, throughput impact, substrate compatibility, and printer requirements for UV large format printing in India.

White Under uses a single white pass before the CMYK layer. CWC uses three passes — CMYK, white, then CMYK again. The second colour pass in CWC produces significantly higher colour density because the image is printed twice on a bright reflective white base.

Yes. Three passes take longer than one or two. The exact reduction depends on the printer model, substrate, and RIP settings. CWC mode is best reserved for premium applications where colour density justifies the additional production time.

CWC requires a white ink channel and multi-pass sequencing support in the printer RIP. EFI VUTEk H-series UV hybrid printers support multi-layer white ink modes. Speak to Arrow Digital’s team to confirm CWC support for a specific model before purchase.

No. CWC (Double Strike) is a 3-pass colour density technique. 9-layer printing is a separate multi-layer mode for applications requiring maximum opacity in premium backlit graphics. Both use the white ink channel but have different layer sequences and use cases.

CWC is most beneficial on transparent, dark, or metallic substrates. On standard white coated media, the visible improvement is minimal and the throughput reduction is not justified. Match the mode to the substrate and application requirement.

Conclusion

Double Strike (CWC) is the right UV large format mode when the substrate is clear, dark, or metallic and colour density is part of the deliverable.

For standard white coated media, single-pass output is sufficient. For premium applications — backlit graphics, POP displays, vehicle wraps on dark film, or fine art prints — CWC closes the gap between digital large format output and offset-quality colour vibrancy.
