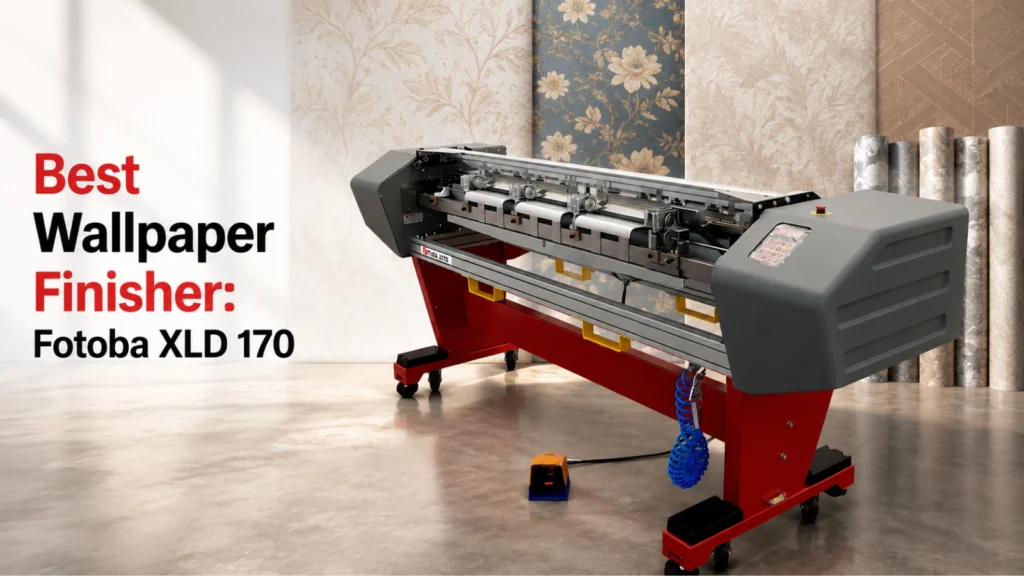

Best Wallpaper Finisher Fotoba XLD 170

Table of Contents

Best Wallpaper Finisher: Fotoba XLD 170

The Fotoba XLD 170 is the automatic XY cutter Indian PSPs use most for precision wallpaper finishing, trimming a 150-foot roll in under 10 minutes with 1 mm cutting accuracy.

Wallpaper is one of the highest-margin categories a large format print shop can add — but only if the finishing keeps pace with the print. Butt-joint seams that don’t quite line up, edges that drift on long rolls, and slow manual trimming can quietly erode the margin that made the category attractive in the first place. As more Indian PSPs add wallpaper and interior décor work to their service mix, finishing — once treated as an afterthought — increasingly decides whether that production line runs smoothly or becomes the bottleneck.

Arrow Digital works with a full range of Fotoba cutting systems built to solve exactly this problem, and among them, the Fotoba XLD 170 is the standard-bearer for automated wallpaper finishing — the wallpaper cutting machine most Indian PSPs reach for first when they move from manual trimming to a fully automated XY cutter.

What Is the Fotoba XLD 170?

The Fotoba XLD 170 is a fully automatic XY cutter built to work with both rolls and sheets of flexible media.

It’s the most flexible model in the Fotoba XLD cutting family, trimming media up to 1.7 metres (67 inches) wide and processing a 150-foot roll in under ten minutes.

Its defining feature is True Edge Tracking. If a printer doesn’t lay the image perfectly parallel to the media edge, or the roll winds up slightly off-square, the XLD 170 automatically re-aligns itself to the printed image rather than the physical edge of the media — so every trimmed piece comes out square, regardless of upstream feed misalignment. That’s what makes clean butt-joint seams possible on a production line, not just in a sample room.

XY Cutter

An automated cutter that trims media along both the X (length) and Y (width) axes in a single pass, producing squared, butt-joint-ready edges without manual measuring.

True Edge Tracking

Fotoba’s edge-detection system, which re-aligns the cutter to the printed image itself — not the physical media edge — automatically correcting for print or roll misalignment.

Key Technical Specifications

The Fotoba XLD 170 cuts up to 170 cm wide at 18 m/min with 1 mm X/Y accuracy.

Specification

Value

Max cutting width

170 cm / 67 in

Min cutting width

28 cm / 11 in

Max roll diameter (standard)

26 cm – 50 kg

Max roll diameter (Heavy Duty accessory, optional)

60 cm – 200 kg

Max roll diameter (with JRU170, optional)

75 cm – 400 kg

Max cutting thickness

1 mm overall; up to 0.8 mm (32 mil) across the full supported flexible media range

Feeding speed

18 m/min

X cutting accuracy

1 mm

Y cutting accuracy

1 mm

Why It Works for Wallpaper Finishing

Wallpaper finishing tolerates less error than most large format work, since seams sit at eye level under raking light.

The XLD 170 handles the range of substrates wallpaper production typically involves: photo paper, polycarbonate, vinyl film, duratrans, canvas, TDF, self-adhesive vinyl, PVC, and both encapsulated and laminated prints, up to 0.8 mm thick.

The self-sharpening blade system maintains cut quality over long production runs without manual blade changes, and multiple stored memory channels let operators switch between saved cut-mark profiles for different jobs. For shops that want a wallpaper-dedicated version of this platform — with tighter butt-joint accuracy tuned specifically for wallpaper tiling — Fotoba also offers the Fotoba XLD 170 WP, a specialised variant built for that single use case.

Applications Beyond Wallpaper

Because the XLD 170 is a general-purpose flexible-media platform, the same machine earns its keep well beyond wallpaper runs.

  • Poster and photo print trimming, including tiled images that need to align edge-to-edge
  • Backlit and duratrans display finishing
  • Textile and soft signage cutting
  • Rolling and converting long production runs, with an optional Fotoba rewinder for a finished roll straight off the cutter

Looking for a combined printer-and-finisher line? The Canon Colorado UVgel Wallpaper Factory pairs Canon’s wallpaper printer with Fotoba finishing as a turnkey system for interior décor production. And if you’re comparing the XLD 170 against the rest of the family, browse the full Fotoba cutting range to see where each model fits.

Roll Handling and Optional Accessories

The XLD 170’s roll capacity scales with the accessories fitted, from 50 kg standard rolls to 400 kg with the optional JRU170 unwinder.

This is worth planning for at the time of purchase rather than after outgrowing the base configuration. In its standard setup, the XLD 170 accepts rolls up to 26 cm in diameter and 50 kg. Adding the optional Heavy Duty accessory raises that to 60 cm and 200 kg, and pairing the machine with the optional JRU170 unwinder extends capacity further still, to 75 cm and 400 kg — useful for shops running long, heavy rolls of wallpaper stock or dense vinyl. The machine also supports an optional Fotoba rewinder, so finished rolls come off the line ready to ship rather than needing a separate winding step.

Standalone or Inline: Installation Options

The Fotoba XLD 170 can run as a standalone cutter or install inline with a compatible large format printer.

As a standalone unit, it uses its own onboard feed system to pull media directly from a finished roll or stack of sheets — a useful setup for shops consolidating finishing work from multiple printers onto a single cutter. Installed inline, a direct connection synchronises the cutter’s feed to the printer’s output, so prints move from print head to finished, trimmed piece without being handled in between. That matters as much for consistency as for speed.

Frequently Asked Questions

It handles most flexible media up to 0.8 mm thick, including photo paper, polycarbonate, vinyl film, duratrans, canvas, TDF, self-adhesive vinyl, PVC, and encapsulated or laminated prints — in both roll and sheet form.

The standard XLD 170 is a general-purpose XY cutter for the full range of flexible media above. The XLD 170 WP is a specialised variant of the same platform, tuned specifically for wallpaper butt-joint accuracy in dedicated wallpaper production.

Both — see the installation options above. It runs as a standalone unit with its own feed system, or inline with a compatible printer for a synchronised print-to-cut workflow.

It feeds media at 18 m/min and can fully cut a 150-foot roll in under ten minutes, with X and Y cutting accuracy of 1 mm.

No — it connects to any compatible large format printer with a free-fall material offload and the correct communication interface. Arrow Digital’s team can confirm compatibility with your existing printer before installation.

Why Arrow Digital

Arrow Digital is India’s authorised Fotoba distributor, supporting the full Fotoba range alongside EFI VUTEk and Canon Colorado printers.

For PSPs moving into wallpaper production, that means one point of contact for the printer, the finishing system, and everything in between. Beyond the hardware, Arrow Digital’s team supports installation, operator training, and ongoing service for the Fotoba range from its offices across India, so PSPs adding wallpaper finishing to their production line aren’t left to figure out the workflow alone.

To see the Fotoba XLD 170 in action, request a demo from Arrow Digital India — India’s authorised Fotoba distributor.
