The five best roll-to-roll printers in 2025 span large format UV LED signage, UVgel decals, and food-safe label production — matched to your output category, speed target, and ink requirement.
Compare max width, throughput speed, ink technology, white-ink support, and primary applications across all five models before reading detailed profiles below.
Printer Model | Max Width | Speed | Ink Technology | White Ink | Best For |
|---|---|---|---|---|---|
EFI VUTEk Q5r | 208 in | 7,233 ft²/hr | UV LED | Yes | High-vol. signage, fleet wraps, superwide banners |
Canon Colorado M5W | 64 in | 1,711 ft²/hr | UVgel + FLXfinish+ | Yes | Premium retail, wallpaper, window decals |
EFI Pro 33r | 126 in | 3,715 ft²/hr | UV LED | Yes | Mid-vol. POP, PVC banners, seasonal campaigns |
EFI Pro 5r+ / 3r+ | 198/138 in | 4,800 ft²/hr | UV LED | Yes | Flex substrates, day/night panels, soft signage |
ArrowJet Bolt | Roll | 150 m/min | Water-based pigment | No | Food-safe labels, flexible packaging, pharma |
The EFI VUTEk Q5r is a 208-inch UV LED large-format roll-to-roll press that integrates inline slitting, trimming, and collecting for non-stop production workflows.
Max Print Width | 208 inches (5.28 m) |
Print Speed | Up to 7,233 ft²/hr at production mode |
Print Resolution | Up to 1,200 dpi |
Ink System | UV LED — CMYK + White + Clear (optional) |
Inline Finishing | Integrated slitting, trimming, and collecting — eliminates post-press queue |
The EFI VUTEk Q5r supports dual-layer printing, enabling day/night backlit graphics, spot white on transparent window clings, and opaque white underlays for high-impact retail signage. White ink is available as a dedicated channel rather than a swap configuration.
Print service providers running non-stop large-format production where throughput, inline automation, and white-ink multi-layering are the primary business drivers.
The Canon Colorado M5W is a 64-inch UVgel large-format printer that delivers gloss and matte finishes in a single pass via FLXfinish+, with optional high-opacity white ink on coloured, transparent, or metallic media.
Max Print Width | 64 inches (1.63 m) |
Print Speed | Up to 1,711 ft²/hr |
Print Resolution | 1,800 dpi equivalent |
Ink Technology | UVgel with FLXfinish+ — UV curing durability with latex-level flexibility |
Ink Channels | CMYK + Optional White |
Unique Feature | Gloss and matte in a single pass — no media or ink change required |
The Canon Colorado M5W supports layered white printing in both directions: CMYK on top of white for opaque colour on dark media, or white on top of CMYK for backlit and reverse-read applications. This makes it particularly suited for window graphics, decals, and point-of-sale displays.
Print shops producing high-margin indoor graphics, décor, and packaging proofs where finish quality and substrate flexibility matter more than raw throughput.

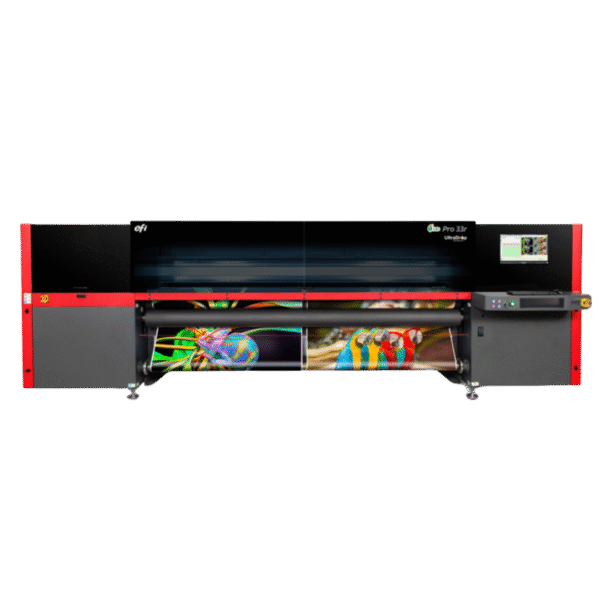

The EFI Pro 33r is a 126-inch UV LED roll-to-roll printer offering 3,715 ft²/hr throughput — a practical entry point for print shops moving from latex or eco-solvent into UV LED large-format production.
The Pro 33r sits within Arrow Digital’s EFI roll-to-roll range. For a detailed comparison of UV LED versus latex and eco-solvent technologies, see UV vs solvent: which wins in 2025.
Max Print Width | 126 inches (3.20 m) |
Print Speed | Up to 3,715 ft²/hr |
Print Resolution | Up to 1,200 dpi |
Ink System | UV LED — CMYK + White |
Design Focus | High uptime, ease of use, and low cost of ownership for PSP operations |
The Pro 33r supports multi-layer printing for illuminated displays, double-sided printing with blockout white to prevent show-through on backlit applications, and decorative window film production with gradient fades.
Growing print service providers who need UV LED quality at a manageable capital cost and want reliable mid-volume throughput without over-investing in a superwide platform.

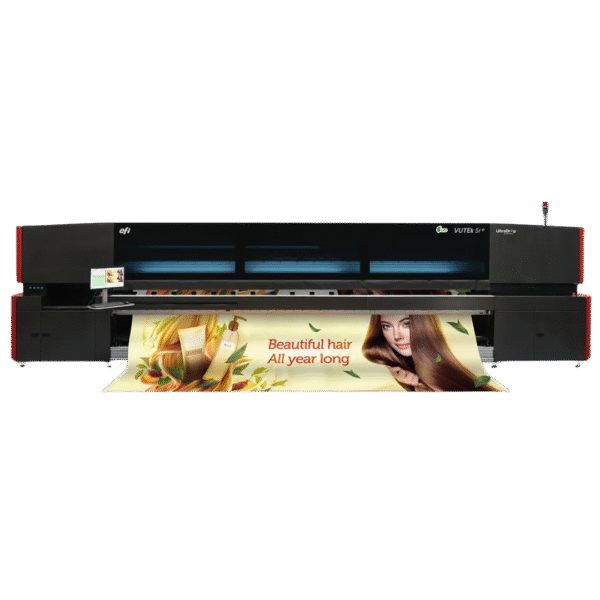

The EFI Pro 5r+ (198 inches) and Pro 3r+ (138 inches) are UV LED roll-to-roll printers with UltraDrop™ grayscale technology, motorised tension bars, and optional inline finishing for high-fidelity output across a wide substrate range.
Max Print Width | 198 in (5r+) / 138 in (3r+) |
Print Speed | Up to 4,800 ft²/hr (5r+ production mode) |
Print Resolution | True 600 dpi with UltraDrop™ variable-drop grayscale |
Ink System | UV LED — CMYK + White + Optional Clear |
Automation Options | Motorised tension bars, automatic blockout printing, inline slitters and light extraction units |
The EFI Pro 5r+ and EFI Pro 3r+ use UltraDrop™ grayscale technology for smoother gradient transitions than standard binary inkjet, making these models well-suited for premium backlit panels. Automated blockout printing removes the manual step of applying an opaque white base layer for day/night graphics.
Established large-format producers who need substrate versatility, automation to reduce operator touchpoints, and smooth gradients on premium backlit applications.
The ArrowJet Bolt is a high-speed digital inkjet label press running up to 150 metres per minute with Nestlé-compliant water-based pigment inks — designed for food-safe labels and short-run flexible packaging without solvent ink handling.
Max Print Speed | Up to 150 metres per minute |
Print Resolution | 1,600 × 1,600 dpi |
Print Technology | Memjet DuraBolt high-speed inkjet |
Ink System | Water-based pigment inks — Nestlé compliance certification |
Compliance | Food-safe inks; suitable for pharmaceutical variable-data labelling |
Substrate Type | Roll-to-roll label stock and flexible packaging films |
Label converters and brand owners producing short-to-medium run food, pharmaceutical, or flexible packaging who require regulatory ink compliance without sacrificing production speed.
Match your primary production priority to the correct model — a single criterion usually narrows the field to one or two options.
Your Priority | Best Choice | Key Reason |
|---|---|---|
Maximum throughput | EFI VUTEk Q5r or ArrowJet Bolt | Highest output rates in signage and label categories respectively |
Premium print quality | Canon Colorado M5W | 1,800 dpi equivalent; gloss/matte switch in a single pass |
Mid-volume versatility | EFI Pro 5r+ or Pro 33r | Balanced speed, white ink, and broad substrate compatibility |
Food-safe / pharma labels | ArrowJet Bolt | Nestlé-compliant water-based pigment inks at 150 m/min |
White ink as core service | Canon M5W, EFI 33r, or Q5r | Dedicated white channel — no swap configuration required |
Inline finishing needed | EFI VUTEk Q5r | Integrated slitting, trimming, and collecting on one platform |
UV LED large format printers (EFI Q5r, 5r+, 33r) cover signage and display applications on rigid and flexible substrates. The Canon Colorado M5W targets premium indoor graphics and packaging proofs. The ArrowJet Bolt is purpose-built for labels and flexible packaging — it is not a general large-format device. For broader equipment selection, also see: how to choose a signage printer in 2025.
The EFI VUTEk Q5r and ArrowJet Bolt offer the highest throughput in their respective categories. The Canon Colorado M5W prioritises resolution and finish quality over raw speed. The EFI Pro 5r+ and Pro 33r provide a production balance — competitive throughput without sacrificing image fidelity.
White ink adds billable value: layered white enables day/night graphics and vivid colour on transparent or metallic films; spot white enhances decals and point-of-sale pieces. The Canon Colorado M5W, EFI Pro 33r, and EFI VUTEk Q5r are the primary choices when white ink is a core service offering.
UV LED inks bond to a broad substrate range and cure instantly. UVgel ink (Canon M5W) combines UV durability with stretchability suited to contour-cut applications. Water-based pigment inks (ArrowJet Bolt) are required for food-contact and pharmaceutical labelling. For a full technology comparison, see: UV vs latex — the real winner in 2025. For water-based ink composition and sustainability data: ink composition and sustainability of water-based inks.
Inline finishing on the EFI VUTEk Q5r eliminates a post-press queue for high-volume operations. The ArrowJet Bolt supports inline packaging configuration to reduce labour per job. Motorised tension bars on the EFI Pro 5r+ and 3r+ reduce substrate damage on sensitive media. Evaluate total operator touchpoints per shift, not just press speed, when calculating ROI.
Direct answers to the most common equipment-buyer questions on roll-to-roll printer selection, ink technology, and production planning.
A roll-to-roll printer feeds flexible media from an input roll, prints on it, and collects the finished output on an output roll — without manual sheet handling. A flatbed printer holds rigid sheets stationary while a gantry moves the print head. Roll-to-roll is suited to vinyl, PVC banners, window film, label stock, and flexible packaging. For rigid substrates (acrylic, wood, glass), a flatbed printer is more appropriate. Browse Arrow Digital’s full large format printer range for both categories. |
UV LED inks cure instantly under ultraviolet light, producing a durable scratch-resistant surface on most substrates. UVgel inks (Canon technology) combine UV curing with a gel formulation that stays flexible after curing — important for contour-cut and wrapped surfaces. Water-based pigment inks dry by absorption and evaporation and are required for food-contact and pharmaceutical labelling. For a full breakdown, read: ink composition and sustainability of water-based inks. |
The EFI VUTEk Q5r, Canon Colorado M5W, EFI Pro 33r, and EFI Pro 5r+/3r+ all support white ink as a dedicated channel. White ink enables printing on transparent, metallic, and dark-coloured media, and enables dual-layer day/night backlighting. The ArrowJet Bolt does not include a white ink channel, as it is optimised for food-safe label and flexible packaging production. |
In the Indian print equipment market, ‘large format’ refers to printers producing output wider than approximately 24 inches — covering banners, vehicle graphics, wallpapers, and textile prints. Roll-to-roll large format printers range from 64 inches (Canon M5W) to 208 inches (EFI VUTEk Q5r) in this comparison. |
No. The ArrowJet Bolt is a high-speed digital inkjet label press, not a large-format signage printer. It is a roll-to-roll device — printing from an input roll to an output roll — but purpose-built for label and flexible packaging production at speeds up to 150 metres per minute. |
Inline finishing integrates slitting, trimming, and collecting on the same platform as printing, so output arrives finished without a separate post-press step. The EFI VUTEk Q5r includes inline finishing as a standard capability, reducing production time significantly for high-volume long-run jobs. |
Key input variables include: current outsourcing cost per m², projected in-house volume per month, press speed, consumables cost (ink per ml, substrate per unit), and operator labour per shift. Payback period typically ranges from 18–36 months for PSPs transitioning from outsourced to in-house UV LED production, depending on volume and substrate mix. Contact Arrow Digital for a cost-per-unit analysis matched to your application mix. |
